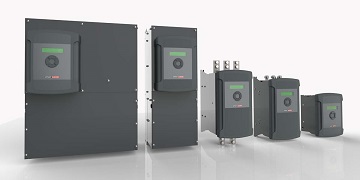

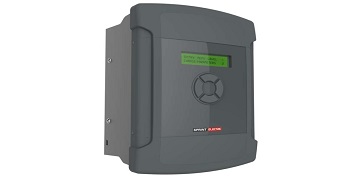

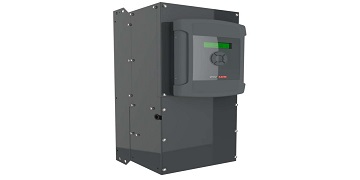

With 2 Quadrant and 4 Quadrant models, you can use the PL/X to control DC motors up to 2250Amps, with all models available from stock. The PL/X series DC Drive is a fully digital DC drive system providing 5kW – 980kW output power. Available in 2Q (single direction) and 4Q (fully regenerative) variants, the range comprises 5 compact chassis sizes with models rated from 12A to 2250A output current. The PL/X boasts an extremely versatile operating input voltage range of 12V – 500VAC as standard. Options are available for 600V and 690VAC input.

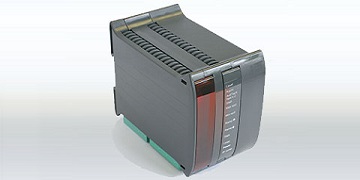

This comprehensive range of DC Drives offers both non-isolated and isolated drives up to 12.2A output current, suitable for DC motors up to 1.8kW (2.0Hp) output power. The product range is available with a wide range of input voltage options, from the standard 110 – 240VAC through to 30V – 60VAC options that can provide output voltage down to 24VDC. The 340/680/1220 Series is an ideal low-cost drive solution to control small brushed or permanent magnet DC motors.
